Concrete granulation agent

Granulation of leftover concrete and returned concrete.

Concrete granulation agent

What is Concrete Granulation Agent (in development) ?

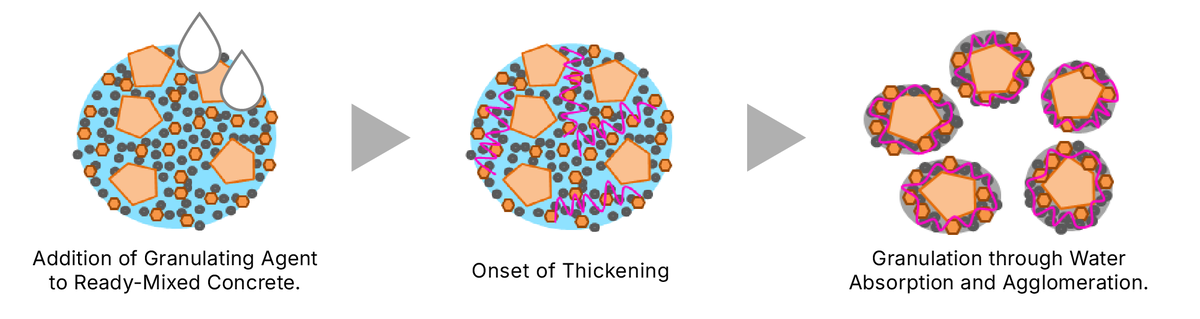

The concrete granulation agent is a material that can be granulated by adding it to leftover concrete or returned fresh concrete. The concrete granulation agent from Nippon Shokubai exhibits thickening effects in alkaline environments, so when added to the strongly alkaline fresh concrete, it thickens the fresh concrete. Furthermore, granulation occurs due to water absorption and aggregation effects.

Physical properties of the product (representative values)

colorshapesmellpHViscosity
(mPa・s)※
Specific gravity (25°C)
milky whiteLiquid (water dispersion liquid)slight odor2.1-5.0≦5001.01-1.10
*Measurement conditions: BM type viscometer, 30 rpm (Measurement temperature: 23°C)

Characteristics of Concrete Granulation Agent​

1. Exhibits thickening effect with increasing pH

It exhibits a thickening effect in alkaline conditions.

2.Enables granulation of fresh concrete

 Granulation confirmed after 5 minutes of mixing.

State after mixing (stirred for 5 minutes, before extraction)
State after mixing (stirred for 5 minutes, after extraction)
